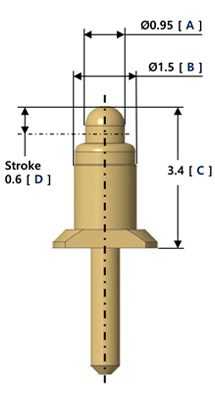

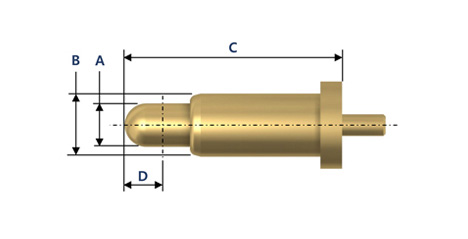

POGO PIN [ Single DIP Type ]

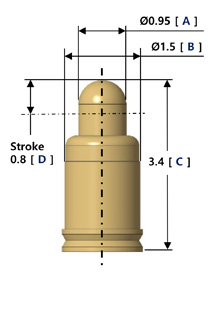

Material

  • · Plunger : C3604, C4926
  • · Sleeve : C3604, C3601, C4926
  • · Spring : SUS304, SWP-B
  • · Plating : Ni, Au, Ag…

Electrical Function

  • · Current Rating : 12V, 2.0A
  • · Contact Resistance : Max 50mΩ

Hanbit D/N
SP15-090340-B0

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø0.95
Sleeve [ Diameter ] - B Ø1.5
Pin Length - C 3.4mm
Contact Stroke - D 0.6±0.1
Contact Force 30g±6g

Hanbit D/N

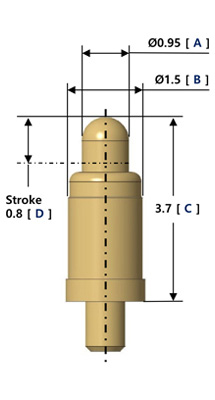

SP15-110370-T0

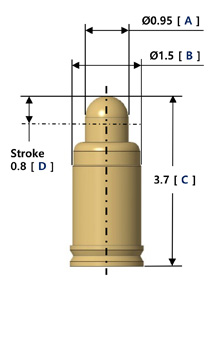

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø0.95
Sleeve [ Diameter ] - B Ø1.5
Pin Length - C 3.7mm
Contact Stroke - D 0.8±0.1
Contact Force 50g±10g

Hanbit D/N

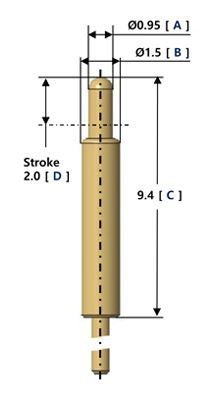

SP15-240940-H0

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø0.95
Sleeve [ Diameter ] - B Ø1.5
Pin Length - C 3.4mm
Contact Stroke - D 2.0±0.1
Contact Force 60g±12g

Hanbit D/N

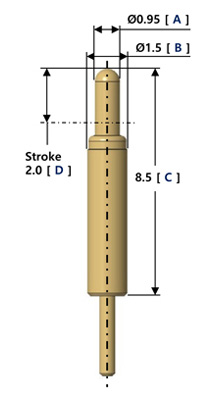

SP15-250850-H0

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø0.95
Sleeve [ Diameter ] - B Ø1.5
Pin Length - C 8.5mm
Contact Stroke - D 2.0±0.1
Contact Force 60g±12g

Hanbit D/N

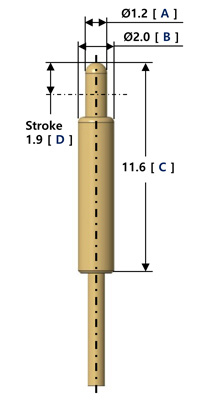

SP20-030116-H2

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø1.2
Sleeve [ Diameter ] - B Ø2.0
Pin Length - C 11.6mm
Contact Stroke - D 1.9±0.1
Contact Force 150g±30g

Hanbit D/N

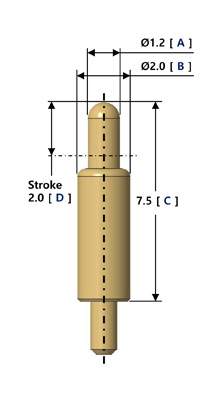

SP20-250750-H1

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø1.2
Sleeve [ Diameter ] - B Ø2.0
Pin Length - C 7.5mm
Contact Stroke - D 2.0±0.1
Contact Force 35g±7g

Hanbit D/N

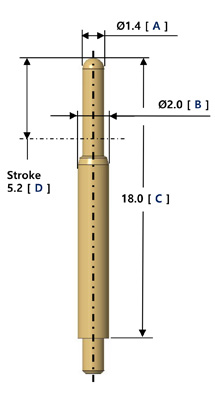

SP20-630180-T0

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø1.4
Sleeve [ Diameter ] - B Ø2.0
Pin Length - C 18.0mm
Contact Stroke - D 5.2±0.1
Contact Force 50g±15g

Hanbit D/N

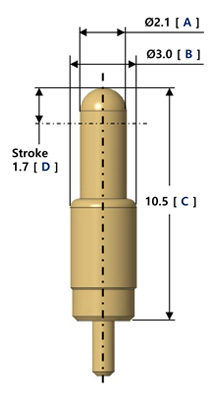

SP30-050105-H0

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø2.1
Sleeve [ Diameter ] - B Ø3.0
Pin Length - C 10.5mm
Contact Stroke - D 1.7±0.1
Contact Force 40g±10g

Hanbit D/N

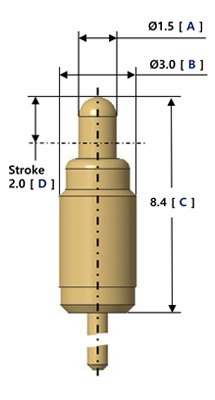

SP30-240174-H0

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø1.5
Sleeve [ Diameter ] - B Ø3.0
Pin Length - C 8.4mm
Contact Stroke - D 2.0±0.1
Contact Force 65g±15g

Hanbit D/N

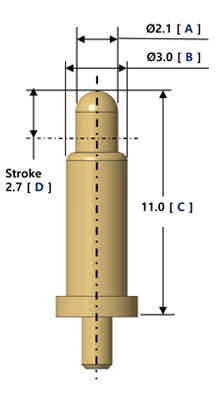

SP30-300110-T1

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø2.1
Sleeve [ Diameter ] - B Ø3.0
Pin Length - C 11.0mm
Contact Stroke - D 2.7±0.1
Contact Force 108g±25g

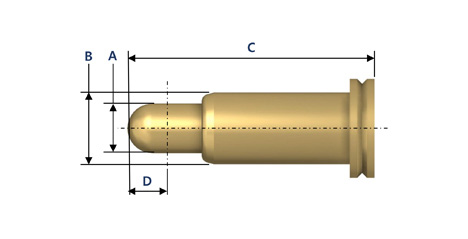

POGO PIN [ Single SMD Type ]

Material

  • · Plunger : C3604, C4926
  • · Sleeve : C3604, C3601, C4926
  • · Spring : SUS304, SWP-B
  • · Plating : Ni, Au, Ag…

Electrical Function

  • · Current Rating : 12V, 2.0A
  • · Contact Resistance : Max 50mΩ

Hanbit D/N

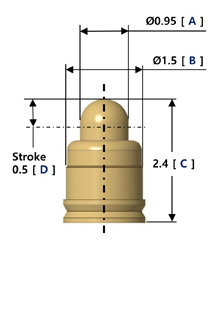

SP15-080240-Z0

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø0.95
Sleeve [ Diameter ] - B Ø1.5
Pin Length - C 2.4mm
Contact Stroke - D 0.5±0.1
Contact Force 30g±10g

Hanbit D/N
SP15-100370-Z1

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø0.95
Sleeve [ Diameter ] - B Ø1.5
Pin Length - C 3.7mm
Contact Stroke - D 0.8±0.1
Contact Force 60g±30g

Hanbit D/N
SP15-110340-Z1

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø0.95
Sleeve [ Diameter ] - B Ø1.5
Pin Length - C 3.4mm
Contact Stroke - D 0.8±0.1
Contact Force 80g±16g

Hanbit D/N

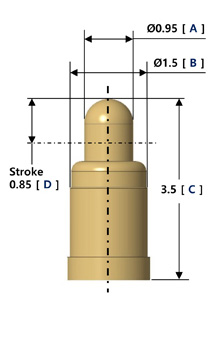

SP15-120350-Z1

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø0.95
Sleeve [ Diameter ] - B Ø1.5
Pin Length - C 3.5mm
Contact Stroke - D 0.85±0.1
Contact Force 90g±18g

Hanbit D/N

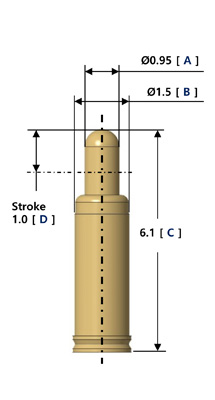

SP15-180610-Z1

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø1.2
Sleeve [ Diameter ] - B Ø1.5
Pin Length - C 6.1mm
Contact Stroke - D 1.0±0.1
Contact Force 100g±20g

Hanbit D/N
SP15-210660-Z0

Mechanical Specification

Mechanical Specification

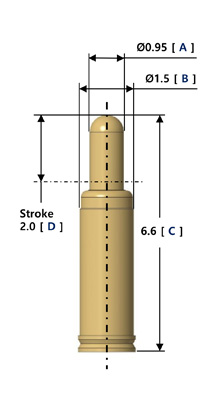

Plunger [ Diameter ] - A Ø0.95
Sleeve [ Diameter ] - B Ø1.5
Pin Length - C 6.6mm
Contact Stroke - D 2.0±0.1
Contact Force 60g±10g

Hanbit D/N
SP15-220560-Z2

Mechanical Specification

Mechanical Specification

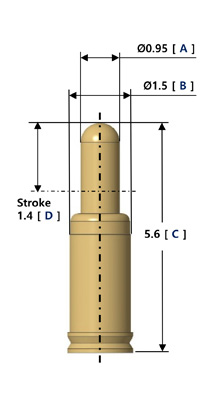

Plunger [ Diameter ] - A Ø0.95
Sleeve [ Diameter ] - B Ø1.5
Pin Length - C 5.6mm
Contact Stroke - D 1.4±0.1
Contact Force 39g±10g

Hanbit D/N

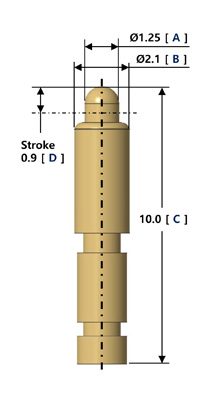

SP20-100530-Z1

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø1.25
Sleeve [ Diameter ] - B Ø2.1
Pin Length - C 10.0mm
Contact Stroke - D 0.9±0.1
Contact Force 70g±14g

Hanbit D/N

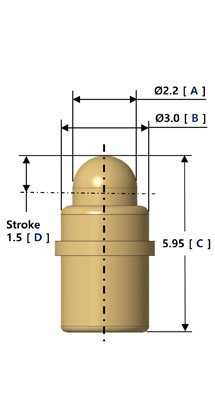

SP30-170610-Z1

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø2.2
Sleeve [ Diameter ] - B Ø3.0
Pin Length - C 5.95mm
Contact Stroke - D 1.5±0.1
Contact Force 30g±6g

Hanbit D/N

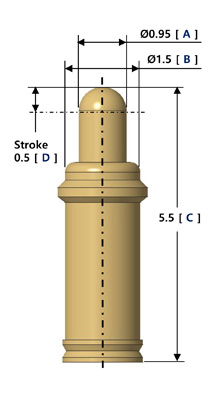

HB-1P2010A-PS00

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø0.95
Sleeve [ Diameter ] - B Ø1.5
Pin Length - C 5.5mm
Contact Stroke - D 0.5±0.1
Contact Force 40g±8g

POGO PIN [ CONNECTOR ]

Material

  • · Plunger : C3604, C4926
  • · Sleeve : C3604, C3601, C4926
  • · Spring : SUS304, SWP-B
  • · Plating : Ni, Au, Ag…
  • · Housing, Cap : PA46, PA66, PBT…
  • · Reel : PS, PET

Electrical Function

  • · Current Rating : 12V, 2.0A
  • · Contact Resistance : Max 50mΩ

Hanbit D/N

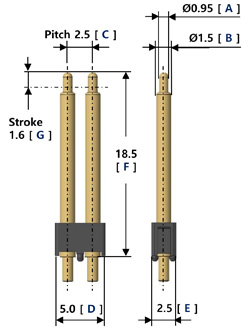

HB-2P002A-T000

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø0.95
Sleeve [ Diameter ] - B Ø1.5
Pin Pitch - C 2.5 Pitch
Connector Width - D 5.0mm
Connector Length - E 2.5mm
Connector Height - F 18.5mm
Contact Stroke - G 1.6±0.1
Contact Force 100g±20g

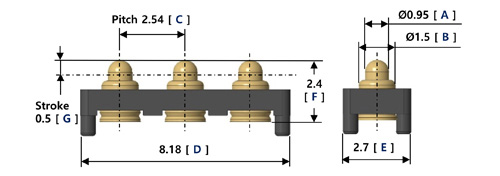

Hanbit D/N
SP15-100370-Z1

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø0.95
Sleeve [ Diameter ] - B Ø1.5
Pin Pitch - C 2.54 Pitch
Connector Width - D 8.18mm
Connector Length - E 2.7mm
Connector Height - F 2.4mm
Contact Stroke - G 0.5±0.1
Contact Force 30g±10g

Hanbit D/N

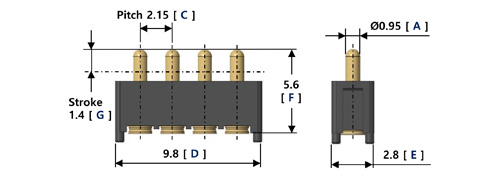

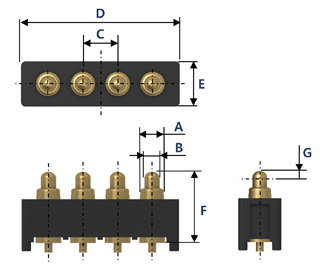

HB-4P004E-Z001

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø0.95
Sleeve [ Diameter ] - B -
Pin Pitch - C 2.15 Pitch
Connector Width - D 9.8mm
Connector Length - E 2.8mm
Connector Height - F 5.6mm
Contact Stroke - G 1.4±0.1
Contact Force 75g±15g

Hanbit D/N

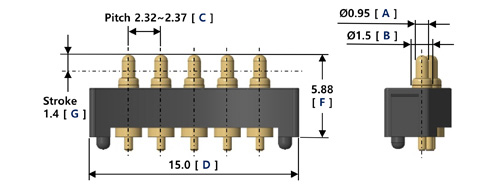

HB-5P0070-T004

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø0.95
Sleeve [ Diameter ] - B Ø1.5
Pin Pitch - C 2.32~2.37 Pitch
Connector Width - D 15.0mm
Connector Length - E -
Connector Height - F 5.88mm
Contact Stroke - G 1.3±0.1
Contact Force 30g±6g

Hanbit D/N

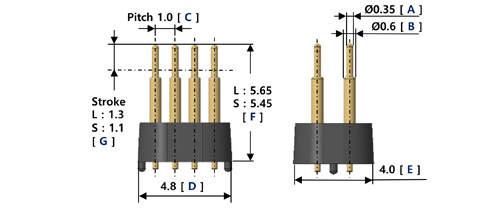

HB-8P0100-T000

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø0.35
Sleeve [ Diameter ] - B Ø0.6
Pin Pitch - C 1.0 Pitch
Connector Width - D 4.8mm
Connector Length - E 4.0mm
Connector Height - F 5.65 / 5.45
Contact Stroke - G 1.3 / 1.1
Contact Force 12g±5g

Hanbit D/N

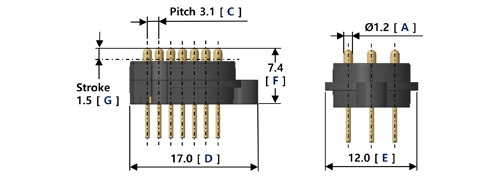

HB-10P2010A-PD00

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø1.2
Sleeve [ Diameter ] - B -
Pin Pitch - C 3.1 Pitch
Connector Width - D 17.0mm
Connector Length - E 12.0mm
Connector Height - F 7.4mm
Contact Stroke - G 1.5±0.1
Contact Force 78g±24g

Hanbit D/N
HB-11P001C-T00A

Mechanical Specification

Mechanical Specification

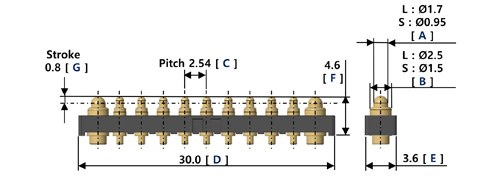

Plunger [ Diameter ] - A Ø1.7 / Ø0.95
Sleeve [ Diameter ] - B Ø2.5 / Ø1.5
Pin Pitch - C 2.54 Pitch
Connector Width - D 30.0mm
Connector Length - E 3.6mm
Connector Height - F 4.6mm
Contact Stroke - G 0.8±0.1
Contact Force 100g±20g

Hanbit D/N

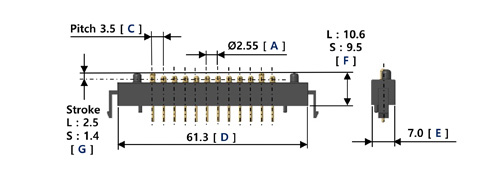

HB-12P002-H000

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø2.55
Sleeve [ Diameter ] - B -
Pin Pitch - C 3.5 Pitch
Connector Width - D 61.3mm
Connector Length - E 7.0mm
Connector Height - F 10.6 / 9.5
Contact Stroke - G 2.5 / 1.4
Contact Force 50g / 25g

Hanbit D/N

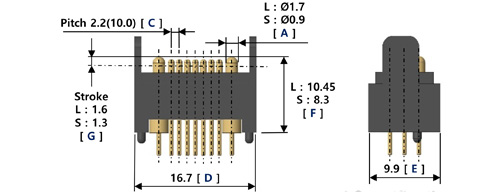

HB-14P2010A-PD01

Mechanical Specification

Mechanical Specification
Plunger [ Diameter ] - A Ø1.7 / Ø0.9
Sleeve [ Diameter ] - B -
Pin Pitch - C 2.2 / 10.0
Connector Width - D 16.7mm
Connector Length - E 9.9mm
Connector Height - F 10.45 / 8.3
Contact Stroke - G 1.6 / 1.3
Contact Force 167g / 50g

Hanbit D/N
HB-17P2020B-PD01

Mechanical Specification

Mechanical Specification

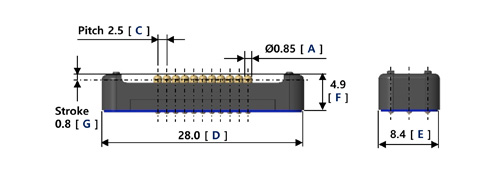

Plunger [ Diameter ] - A Ø0.85
Sleeve [ Diameter ] - B -
Pin Pitch - C 2.5 Pitch
Connector Width - D 28.0mm
Connector Length - E 8.4mm
Connector Height - F 4.9mm
Contact Stroke - G 0.8±0.1
Contact Force 33g±8g

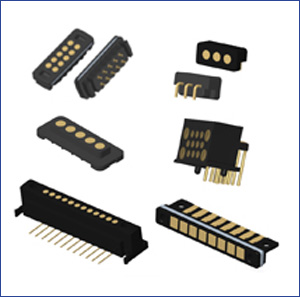

TERMINAL PIN [ CONNECTOR ]

Material

  • · Terminal Pin : C3604, C3601, C4926
  • · Plating : Ni, Au, Ag, Pd…
  • · Housing, Cap : PA46, PA66, PBT…
  • · Reel : PS, PET

Electrical Function

  • · Current Rating : 12V, 2.0A
  • · Contact Resistance : Max 50mΩ

Hanbit D/N
HB-2P2040C-TD00

Mechanical Specification

Mechanical Specification

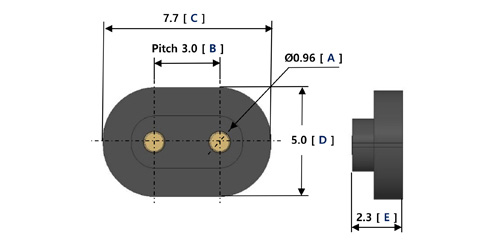

Terminal [ Diameter ] - A Ø0.96
Terminal Pitch - B 3.0 Pitch
Connector Width - C 7.7mm
Connector Length - D 5.0mm
Connector Height - E 2.3mm

Hanbit D/N

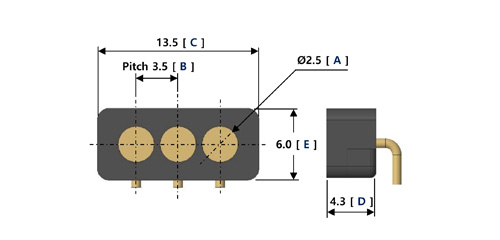

HB-3P0160-TB00

Mechanical Specification

Mechanical Specification
Terminal [ Diameter ] - A Ø2.5
Terminal Pitch - B 3.5 Pitch
Connector Width - C 13.5mm
Connector Length - D 4.3mm
Connector Height - E 6.0mm

Hanbit D/N

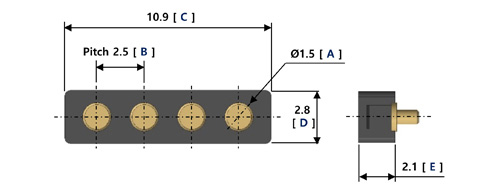

HB-4P010A-ZA00

Mechanical Specification

Mechanical Specification
Terminal [ Diameter ] - A Ø1.5
Terminal Pitch - B 2.5 Pitch
Connector Width - C 10.9mm
Connector Length - D 2.8mm
Connector Height - E 2.1mm

Hanbit D/N

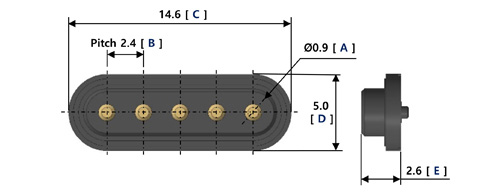

HB-5P0080-Z000

Mechanical Specification

Mechanical Specification
Terminal [ Diameter ] - A Ø0.9
Terminal Pitch - B 2.4 Pitch
Connector Width - C 14.6mm
Connector Length - D 5.0mm
Connector Height - E 2.6mm

Hanbit D/N
HB-5P0080-Z000

Mechanical Specification

Mechanical Specification

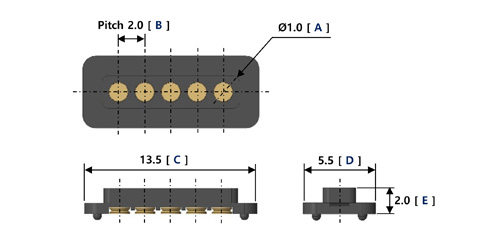

Terminal [ Diameter ] - A Ø1.0
Terminal Pitch - B 2.0 Pitch
Connector Width - C 13.5mm
Connector Length - D 5.5mm
Connector Height - E 2.0mm

Hanbit D/N

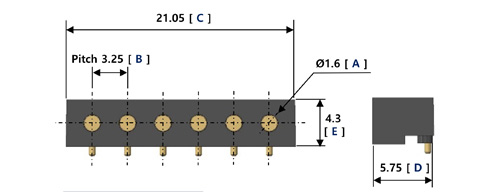

HB-6P2060A-TB00

Mechanical Specification

Mechanical Specification
Terminal [ Diameter ] - A Ø1.6
Terminal Pitch - B 3.25 Pitch
Connector Width - C 21.05mm
Connector Length - D 5.75mm
Connector Height - E 4.3mm

Hanbit D/N

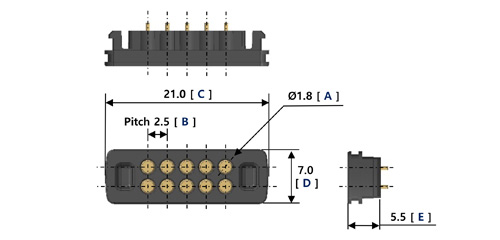

HB-10P0010-P000

Mechanical Specification

Mechanical Specification
Terminal [ Diameter ] - A Ø1.8
Terminal Pitch - B 2.5 Pitch
Connector Width - C 21.0mm
Connector Length - D 7.0mm
Connector Height - E 5.5mm

Hanbit D/N

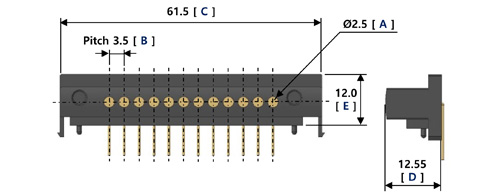

HB-12P001-H004

Mechanical Specification

Mechanical Specification
Terminal [ Diameter ] - A Ø2.5
Terminal Pitch - B 3.5 Pitch
Connector Width - C 61.5mm
Connector Length - D 12.55mm
Connector Height - E 12.0mm

Hanbit D/N

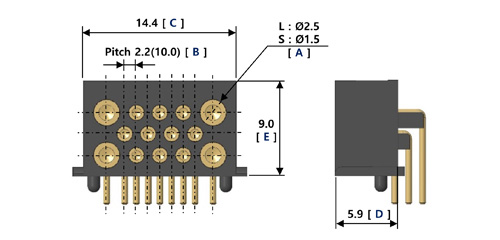

HB-14P2010A-TB01

Mechanical Specification

Mechanical Specification
Terminal [ Diameter ] - A Ø2.5 / Ø1.5
Terminal Pitch - B 2.2 / 10.0
Connector Width - C 14.4mm
Connector Length - D 5.9mm
Connector Height - E 9.0mm

Hanbit D/N

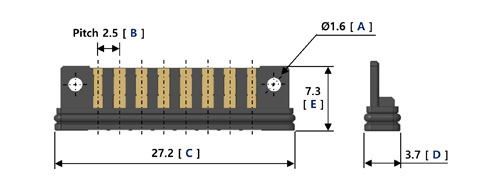

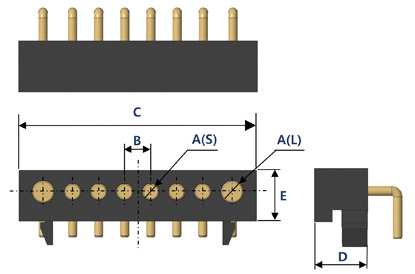

HB-HCD006-00A-8P

Mechanical Specification

Mechanical Specification
Terminal [ Diameter ] - A Ø1.6
Terminal Pitch - B 2.5 Pitch
Connector Width - C 27.2mm
Connector Length - D 3.7mm
Connector Height - E 7.3mm
